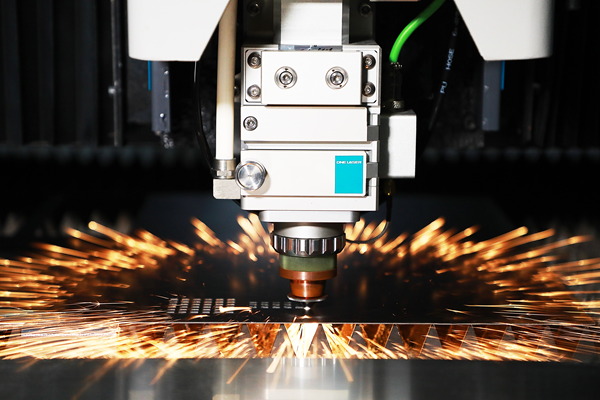

The D-Speed is built and designed with durable components and advanced technology. With a Swiss-developed short-focus cutting head, the D-Speed delivers fast cutting (1.5G maximum single-axis acceleration), smooth cut surfaces, minimal burrs and a quick ROI.
| Specification | 1530 | 2040 | 2060 | 2560 |
|---|---|---|---|---|
| Processing Area (mm) | 3048*1524 | 4050*2030 | 6100*2030 | 6100*2550 |
| Z-Axis Travel (mm) | 280 | 440 | 440 | 440 |
| Power Range | 3/6/12kW | 3/6/12/20kW | 3/6/12/20kW | 6/12/20kW |
| Bevel Head Option | No | No | No | No |
| Positioning Accuracy (mm) | +/- .05mm | +/- .05mm | +/- .05mm | +/- .05mm |
| Repeated Positioning Accuracy (mm) | +/- .03mm | +/- .03mm | +/- .03mm | +/- .03mm |
| Edge Finding Accuracy (mm) | +/- .5mm | +/- .5mm | +/- .5mm | +/- .5mm |
| Max Linkage Positioning Speed (Straight) | 150m/min | 150m/min | 150m/min | 150m/min |
| Max Linkage Acceleration (Straight) | 1.5G | 1.5G | 1.5G | 1.5G |
| Table Load Capacity (lbs) | 2204.6 (3/6kW) 3306.9 (12kW) | 2645.5 (3/6kW) 5511.6 (12/20kW) | 3968.3 (3/6kW) 8157.1 (12/20kW) | 5291.1 (6kW) 10361.7 (12/20kW) |
| Low-Pass Filter | 7 HZ | 7 HZ | 7 HZ | 7 HZ |
| Appearance Size (L*W*H mm) | 8960*2720*2400 | 11200*3630*2480 | 15940*3630*2480 | 15940*4310*2480 |
| Total Weight (lbs) | ~11800 | ~18000 | ~24000 | ~32600 |
| Distance from cutting bridge bottom to upper workbench | 80mm | 85mm | 85mm | 125mm |
| Workbench spacing | 70mm | 85mm | 85mm | 115mm |
| Table Change Over Time (2 level table) - Unloaded | 16s | 20s | 24s | 24s |
Profit from our one-of-a-kind DNExperience when you purchase a DNE machine. Get American support and service from our experienced, knowledgeable OpEx team---the team who trains and works on these machines on a regular basis. When you purchase a DNE, you don’t just get a machine, you get:
Get in touch today and take the first step towards superior laser cutting performance.
