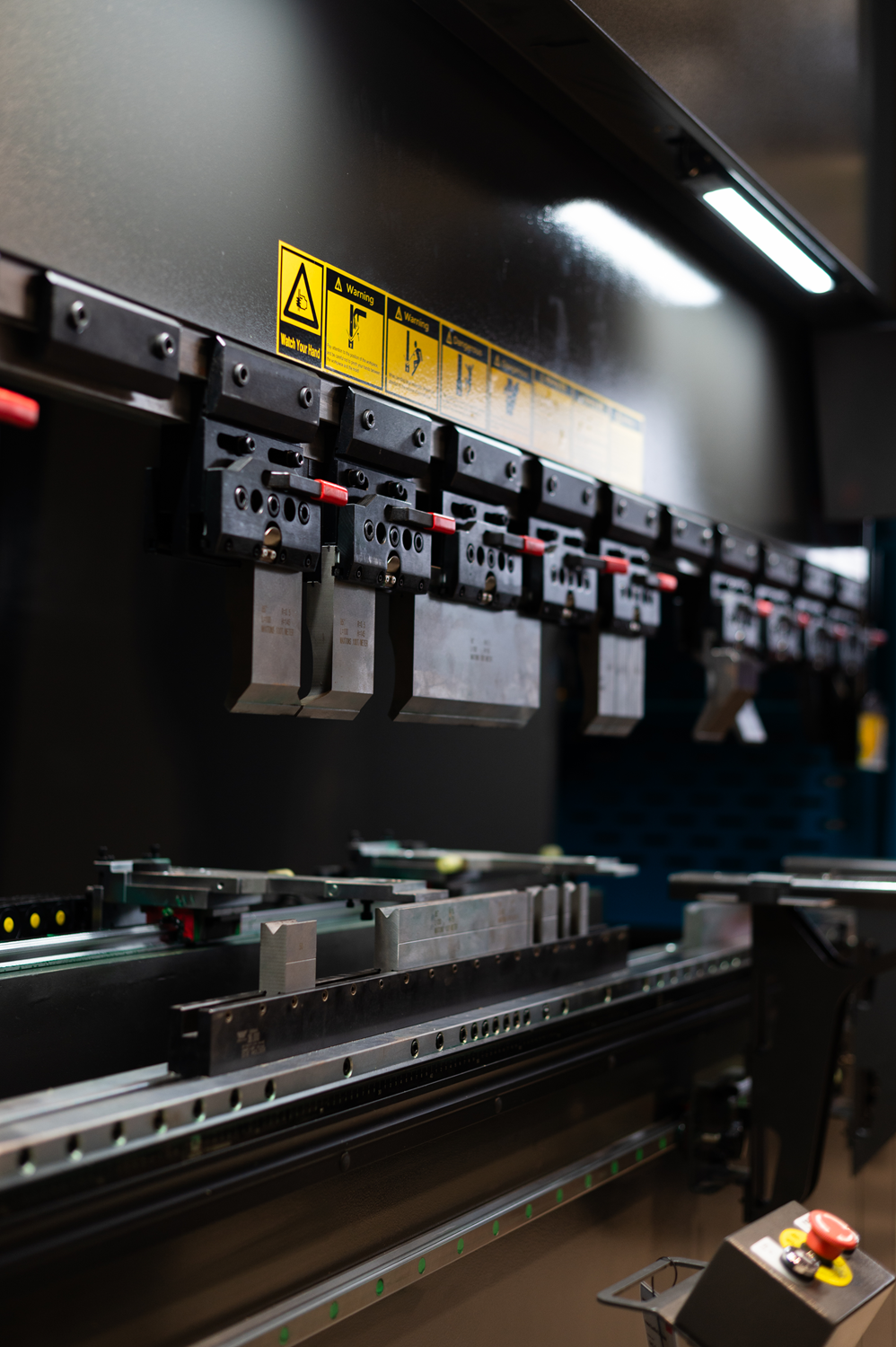

The C-Bend Press Brake incorporates the best of metal forming technology and expertise to ensure consistent, precise bending. In short, the owners of this affordable press brake get a favorable price-performance ratio with a quick return-on-investment.
| Specification | 100/3100 | 160/3100 | 225/3100 | 225/4100 |
|---|---|---|---|---|
| Bending force | 112.4 Tons | 179.8 Tons | 252.9 Tons | 252.9 Tons |
| Bending length | 122.05in | 122.05in | 122.05in | 161.42in |
| Standard stroke | 7.87in | 11.81in | 11.81in | 11.81in |
| Daylight opening | 19.69in | 23.62in | 23.62in | 23.62in |
| Throat | 16.14in | 16.14in | 16.14in | 16.14in |
| Distance between the side frames | 98.43in | 98.82in | 98.82in | 134.65in |
| Max. backgauge range in X | 31.50in | 31.50in | 31.50in | 31.50in |
| X axis travel | 19.69in | 19.69in | 19.69in | 19.69in |
| X axis speed up to | 15.75in./s | 15.75in./s | 15.75in./s | 15.75in./s |
| X axis accuracy | 0.0020in | 0.0020in | 0.0020in | 0.0020in |
| R axis travel | 3.94in | 3.94in | 7.87in | 7.87in |
| R axis speed up to | 3.94in./s | 3.94in./s | 3.94in./s | 3.94in./s |
| R axis accuracy | 0.0020in | 0.0020in | 0.0020in | 0.0020in |
| Z axis travel | 90.55in | 90.55in | 90.55in | 125.98in |
| Z axis speed up to | 23.62in./s | 23.62in./s | 23.62in./s | 23.62in./s |
| Y axis approach speed up to | 5.91in./s | 5.91in./s | 4.72in./s | 4.72in./s |
| Y axis working speed up to | 0.39in./s | 0.39in./s | 0.51in./s | 0.51in./s |
| Y axis return speed up to | 5.51in./s | 5.91in./s | 4.72in./s | 4.72in./s |
| Y axis accuracy | 0.0004in | 0.0004in | 0.0004in | 0.0004in |
| Main motor power (HP) | 11.4 | 24.1 | 29.5 | 29.5 |
| Hydraulic oil consumption | 66.1 Gal | 66.1 Gal | 66.1 Gal | 118.9 Gal |
| Length (exclude length of operator terminal arm) | 146.85in | 149.61in | 149.61in | 188.98in |
| Width (exclude length of operator terminal arm) | 84.65in | 84.65in | 84.65in | 84.65in |
| Height | 106.30in | 116.14in | 116.14in | 125.39in |
| Weight* | 9.37 Tons | 11.57 Tons | 14.88 Tons | 17.09 Tons |
Profit from our one-of-a-kind DNExperience when you purchase a DNE machine. Get American support and service from our experienced, knowledgeable OpEx team---the team who trains and works on these machines on a regular basis. When you purchase a DNE, you don’t just get a machine, you get:
Get in touch today and take the first step towards superior bending performance.
